Adding Custom Integrations

Custom integration capability is currently available for SAST, SCA, Container Security (CS), and Infrastructure as Code (IAC) scanner categories.

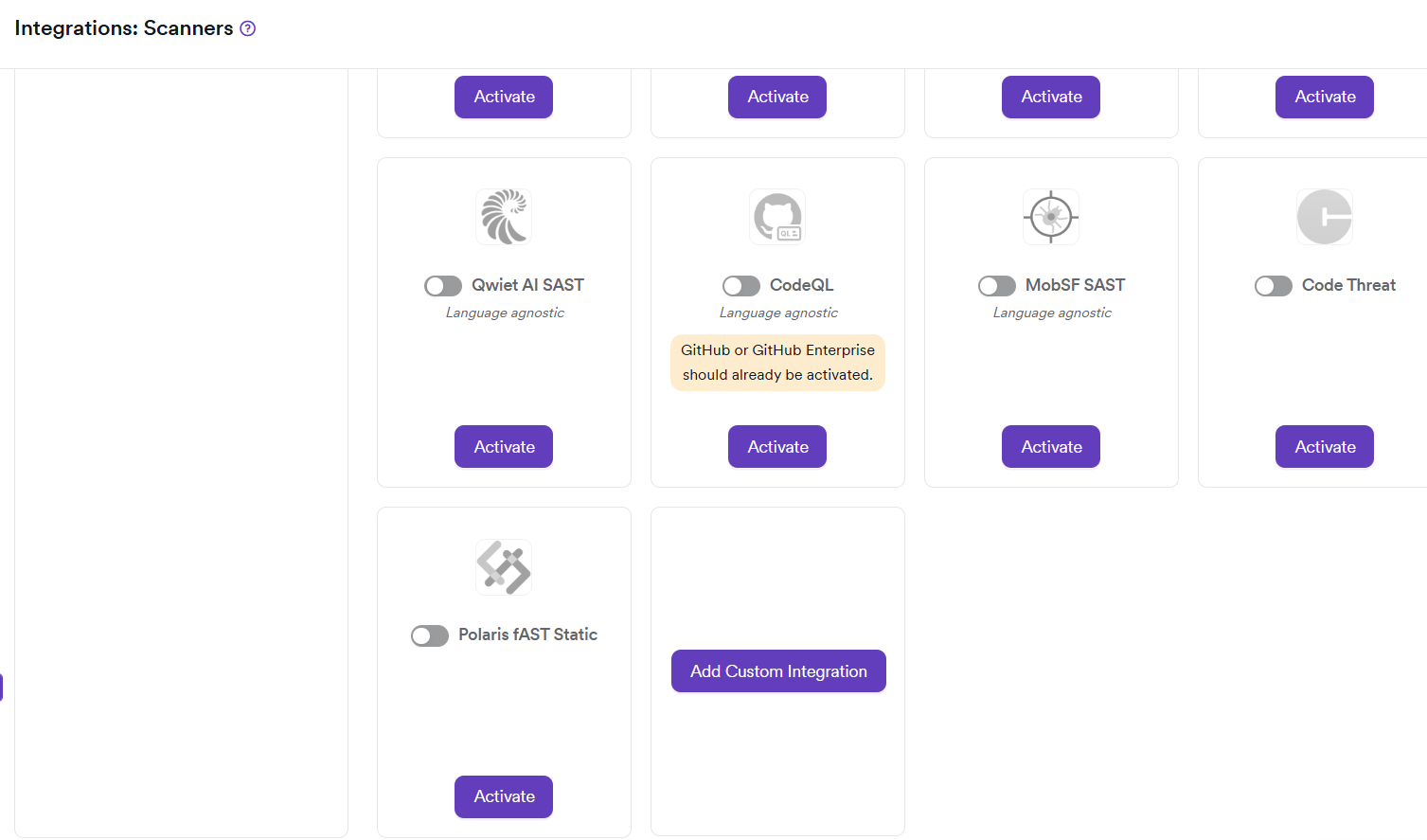

To add a custom integration, select Integrations from left side menu and then select Scanners. Click the Add Custom Integration button in the relevant scanner category.

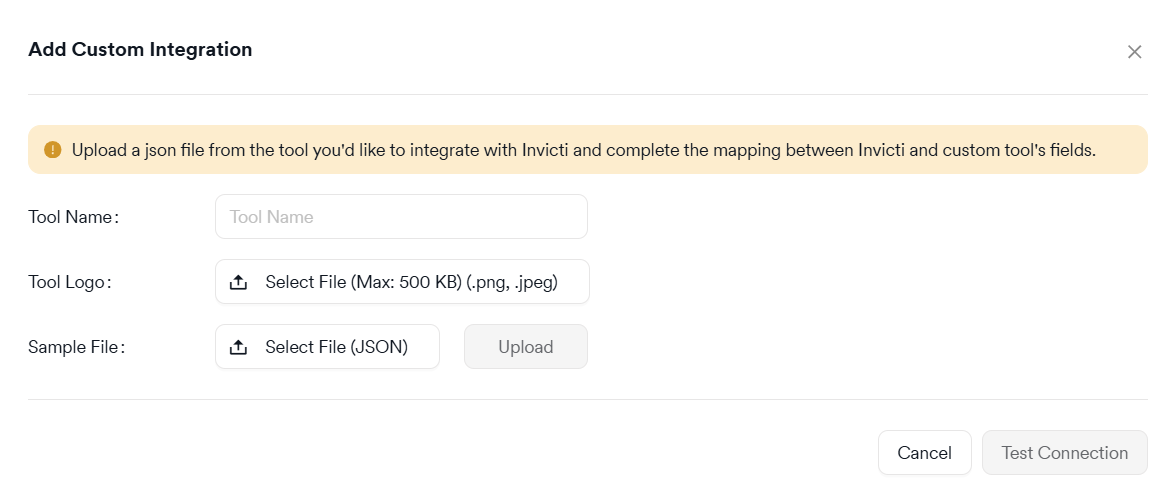

Configure custom integration

Step 1: Provide tool information

In the configuration dialog:

• Tool name: required field for identifying your custom scanner
• Logo: optional - you can upload a logo file for the tool

Step 2: Upload JSON configuration

Upload a JSON file extracted from the custom tool to Invicti ASPM. This file is used to complete the mapping between Invicti AppSec fields and fields available on the custom tool.

Step 3: Complete field mapping

Once the JSON file is uploaded, complete the mapping configuration to ensure proper data correlation between your custom scanner and Invicti ASPM.

Import scan results

After the mapping is completed, you can import the scanner's result files to Invicti ASPM through either:

• UI import: Navigate to Projects > Vulnerabilities > Import
• Command line: Use KDT (Invicti ASPM Development Tools) just like any other scanner

📘

Supported scanner types

Custom integrations are supported for:

• SAST (Static Application Security Testing)
• SCA (Software Composition Analysis)
• CS (Container Security)
• IAC (Infrastructure as Code)
