Acunetix 360 DAST/API Integration

Acunetix 360 (now Invicti) is a cloud-based DAST platform offering scalable web application scanning with proof-based vulnerability detection. This integration allows Invicti ASPM to trigger scans on Acunetix 360 and import verified vulnerability findings.

Prerequisites

Field	Description
Acunetix 360 URL	Your Acunetix 360 tenant URL (e.g., `https://your-org.netsparkercloud.com`)
API Token	A user API token generated from your Acunetix 360 account

How to Get an API Token (on Acunetix 360 Side)

Log in to your Acunetix 360 dashboard.
Click your profile icon in the upper right corner.
Select User Settings from the dropdown.
Navigate to the API Token section.
Click Generate Token.
Copy the token — it is shown only once after generation.

Step 1: Navigate to Integrations

From the left sidebar menu, click on Integrations.

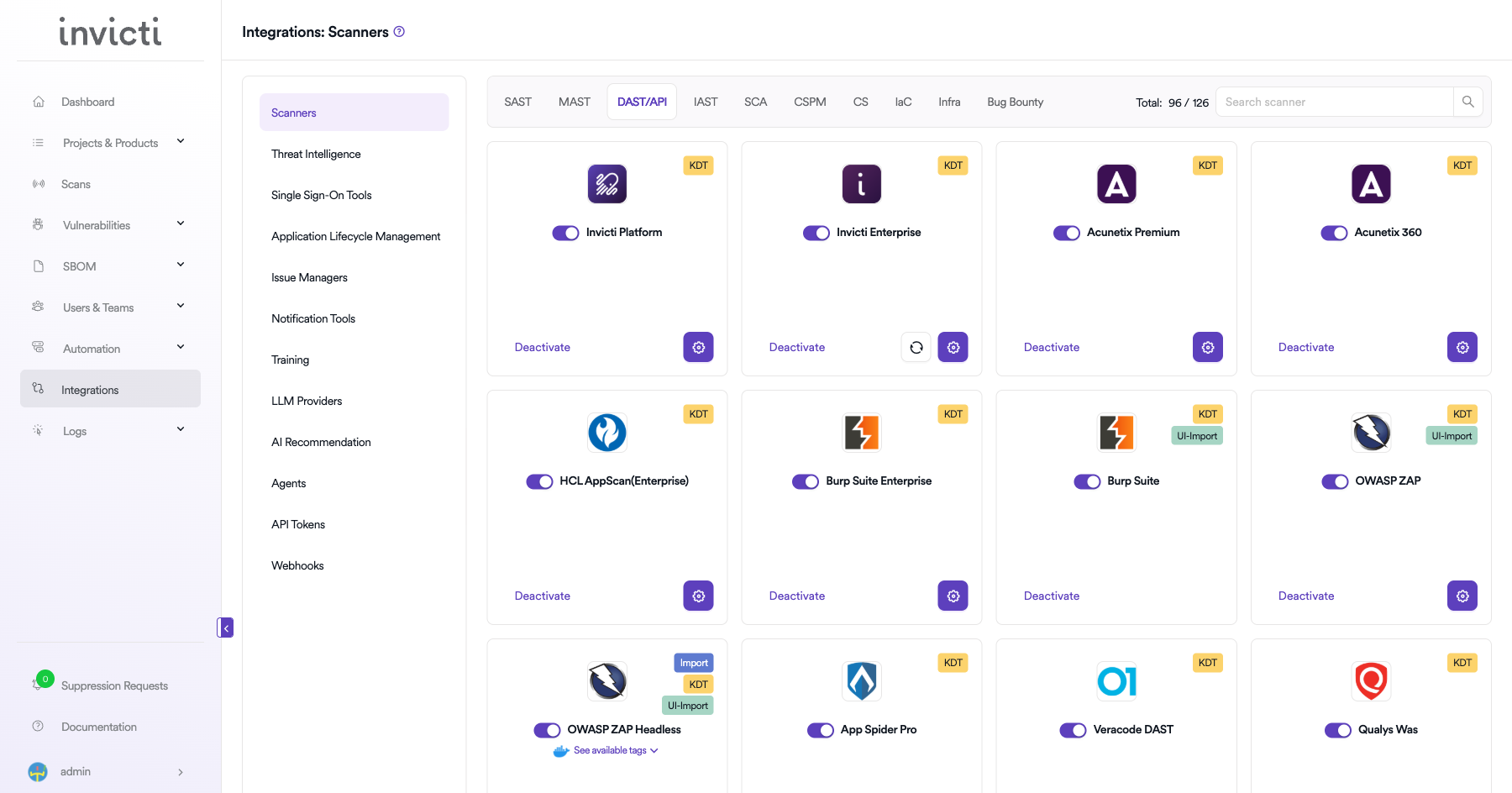

Step 2: Select the DAST/API Tab

On the Integrations > Scanners page, click on the DAST/API tab.

Step 3: Find and Activate Acunetix 360

Scroll through the list of DAST/API scanners to find Acunetix 360.

If Acunetix 360 is not activated, you will see an "Activate" button. Click it to enable the integration.

Note: The scan method badge on the Acunetix 360 card shows KDT, which means scans are triggered through the Kondukto CLI tool (KDT).

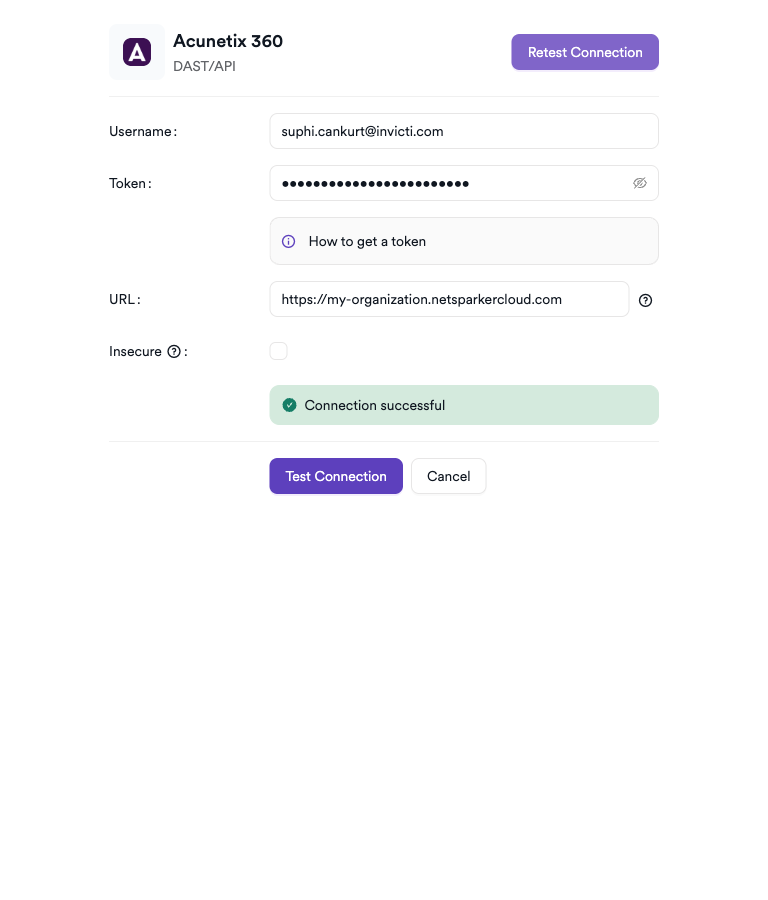

Step 4: Configure Connection Settings

Click on the gear icon on the Acunetix 360 card to open the configuration panel. Fill in the required fields:

Username: Enter your Acunetix 360 account username.
Token: Paste the API access token you generated from your Acunetix 360 user settings.
URL: Enter your Acunetix 360 tenant URL (e.g., https://your-org.netsparkercloud.com).
Insecure: Enable this checkbox only if your Acunetix 360 instance uses a self-signed SSL certificate.

Step 5: Test the Connection

Click Test Connection. A green Connection successful message confirms connectivity.

Summary

Step	Action
1	Navigate to Integrations from the sidebar
2	Select the DAST/API tab
3	Activate Acunetix 360
4	Enter Username, Token, URL, and optional Insecure setting
5	Test the connection

How to Create a Scan

Navigate to Project Scanners

Open a project in Invicti ASPM.
Go to Settings > Scanners.
Click Add Scanner.

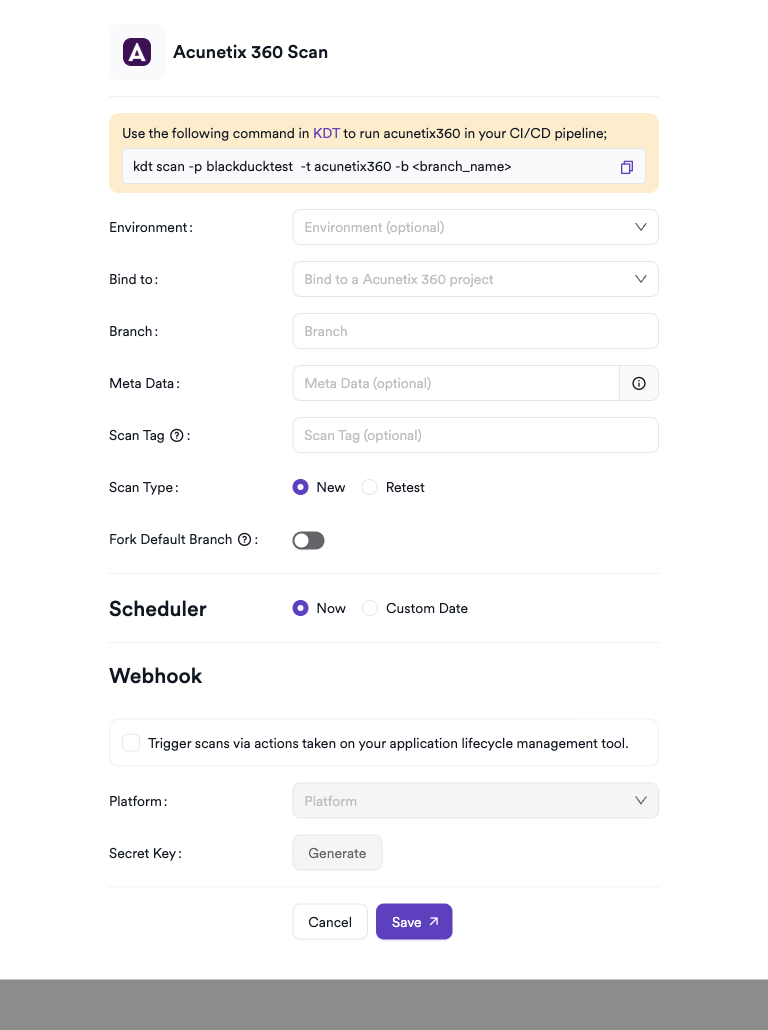

Add Acunetix 360 Scanner

Select DAST/API as the scanner type.
Choose Acunetix 360 from the scanner list.
Click Add to open the scan configuration drawer.

Scan Configuration Fields

Field	Description	Required
Environment	Select the environment for the scan	No
Bind To	Acunetix 360 project to bind to	Yes
Scan Type	Select scan type: New or Retest	No
Branch	Source code branch associated with this scan	No
Meta Data	Additional metadata for the scan	No
Scan Tag	Tag to identify the scan	No

Scheduler

Enable the Scheduler toggle to run this scan on a recurring schedule.

Webhook (Optional)

Add a webhook URL to receive scan status notifications.

KDT Command

kdt scan -p <project_name> -t acunetix360 -b <branch_name>

Troubleshooting

Connection Fails

Issue	Resolution
Invalid API token	Regenerate the token from Acunetix 360 user settings
Wrong tenant URL	Verify the correct tenant subdomain (e.g., `your-org.netsparkercloud.com`)
Token expired or revoked	Generate a new API token and update the integration
Network access	Ensure Invicti ASPM can reach `netsparkercloud.com` on port 443

Scan Issues

Issue	Resolution
No websites available	The user account must have access to the target websites in Acunetix 360
Scan not triggered	Verify the account has the necessary permissions to create scans
Empty results	Check if the scan completed in the Acunetix 360 dashboard
Rate limits hit	Reduce concurrent scan triggers or contact Acunetix 360 support

Best Practices

Use a dedicated service account with the minimum required permissions in Acunetix 360.
Rotate the API token every 90 days.
Pre-configure and verify target websites in Acunetix 360 before triggering scans from Invicti ASPM.
Use proof-based scanning profiles to eliminate false positives.
Schedule scans outside of peak traffic hours.

Limitations

The API token is associated with a specific user account; permissions are limited to what that account can access in Acunetix 360.
Concurrent scan capacity is governed by your Acunetix 360 subscription.
Cloud-based scanning requires the target application to be accessible from Acunetix 360 infrastructure.
Some advanced scan configurations (e.g., authenticated scans with complex login flows) must be configured directly in Acunetix 360.
