Tenable.io VM

Tenable.io VM (Vulnerability Management) is a cloud-based vulnerability management platform. In Invicti ASPM, the integration imports vulnerability findings from Tenable.io into your projects by binding to existing Tenable.io scans.

Prerequisites

Field	Description
User Key	Tenable.io API access key (user key)
Secret Key	Tenable.io API secret key paired with the User Key

How to Get API Keys (on Tenable.io Side)

Log in to the Tenable.io console.
Navigate to Settings > My Account > API Keys.
Click Generate to create a new Access Key and Secret Key pair.
Copy both the Access Key (User Key) and Secret Key immediately — the secret is shown only once.

Note: Refer to the Token Instructions link displayed in the Invicti ASPM settings panel for additional guidance on generating Tenable.io API credentials.

Step 1: Navigate to Integrations

From the left sidebar menu, click on Integrations.

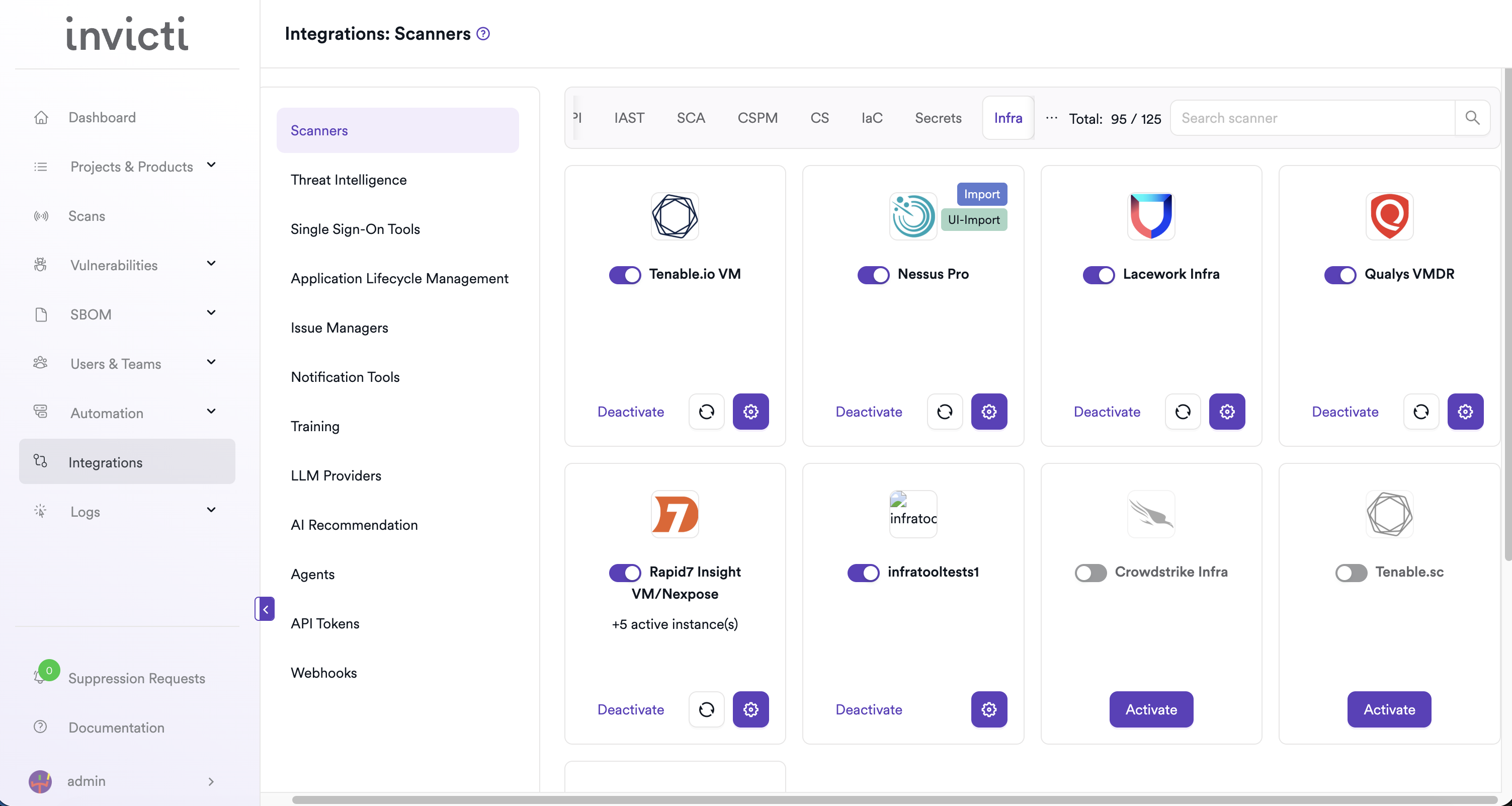

Step 2: Select the Infra Tab

On the Integrations > Scanners page, click on the Infra tab.

Step 3: Find and Activate Tenable.io VM

Scroll through the list of Infra scanners to find Tenable.io VM.

If Tenable.io VM is not activated, click the Activate button to enable the integration.

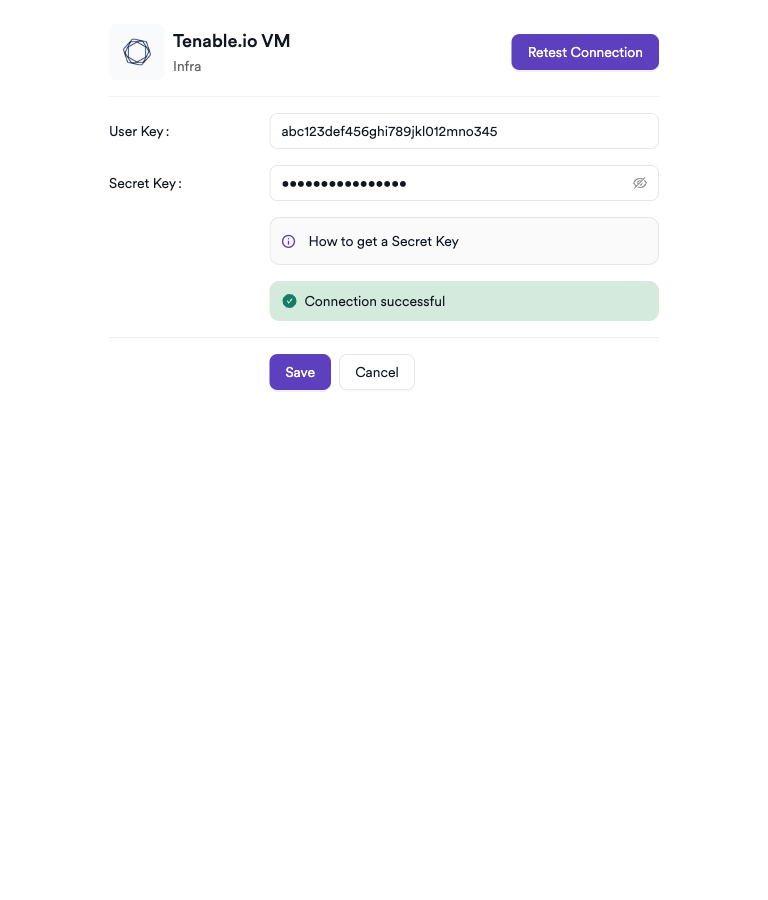

Step 4: Configure Connection Settings

Click the gear icon on the Tenable.io VM card to open the settings panel. Fill in the required fields:

Field	Description	Required
User Key	Tenable.io API Access Key	Yes
Secret Key	Tenable.io API Secret Key paired with the User Key	Yes

Step 5: Test the Connection

Click Test Connection. A green Connection successful message confirms that Invicti ASPM can authenticate with the Tenable.io API.

Summary

Step	Action
1	Navigate to Integrations from the sidebar
2	Select the Infra tab
3	Activate Tenable.io VM
4	Enter User Key and Secret Key
5	Test the connection

How to Create a Scan

Navigate to Project Scanners

Open a project in Invicti ASPM.
Go to Settings > Scanners.
Click Add Scanner.

Add Tenable.io VM Scanner

Select Infra as the scanner type.
Choose Tenable.io VM from the scanner list.
Click Add to open the scan configuration drawer.

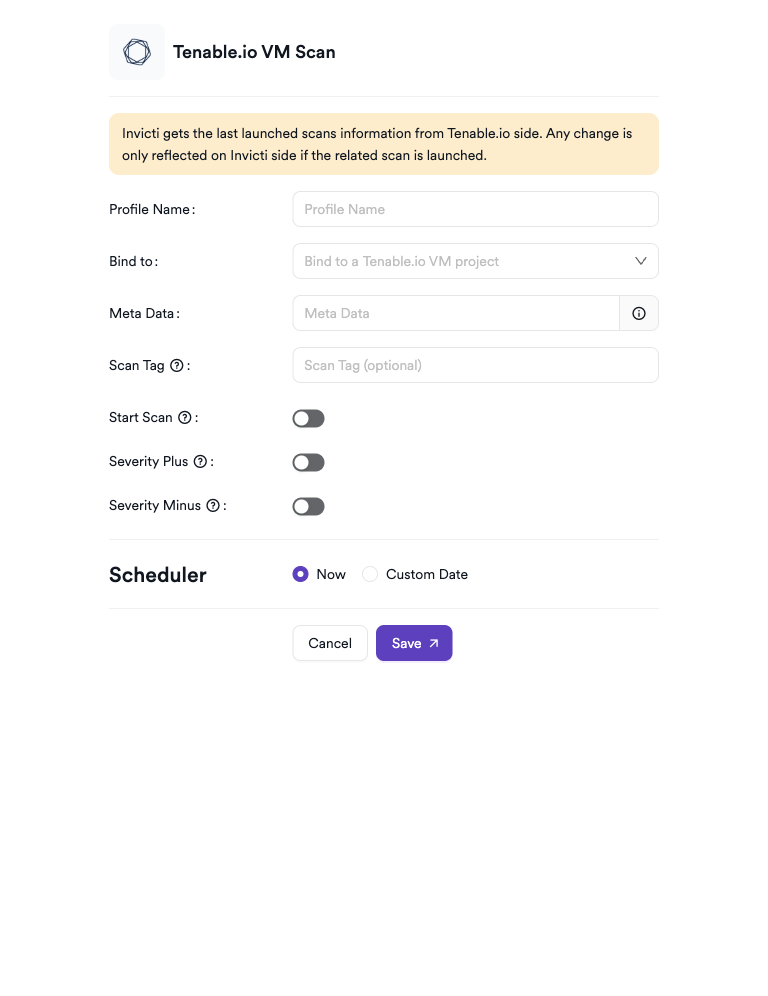

Scan Configuration Fields

Field	Description	Required
Profile Name	A name to identify this scan configuration	Yes
Bind to	Select the Tenable.io VM scan to bind to	Yes
Meta Data	Additional metadata to tag the scan	Yes
Scan Tag	Free-text tag to identify or group scans	No
Start Scan	Toggle to trigger the Tenable.io scan immediately	No
Severity+	Increase severity of imported findings by one level	No
Severity-	Decrease severity of imported findings by one level	No

When you select a scan from the Bind to dropdown, the drawer displays the scan's targets, tags, agents, and policy details for reference.

Severity+ and Severity- are mutually exclusive — only one can be enabled at a time.

Scheduler

Enable the Scheduler toggle to automatically run Tenable.io VM scans on a recurring schedule.

Webhook (Optional)

Add a webhook URL to receive scan completion notifications.

KDT Command

kdt scan -p <project_name> -t tenableiovm -b -

Troubleshooting

Connection Fails

Issue	Resolution
Invalid User Key or Secret Key	Verify the API keys in the Tenable.io console under Settings > My Account > API Keys. Regenerate if needed.
Permission denied	Ensure the API key belongs to a user with access to vulnerability management data.
Secret not available	The secret key is shown only at creation — generate a new key pair if the original was not saved.

Scan Issues

Issue	Resolution
No scans available in Bind to dropdown	Ensure at least one completed scan exists in your Tenable.io account and the API key has access to it.
Scan shows no findings	The selected Tenable.io scan may have no vulnerabilities, or the scan may not have completed. Check the Tenable.io console.
Scan not starting	Verify the scanner is activated and the connection test passes in the integration settings.

Best Practices

Use a dedicated API key for Invicti ASPM with the minimum required permissions rather than reusing credentials shared with other tools.
Rotate API keys periodically and update the integration settings in Invicti ASPM accordingly.
Bind each Invicti ASPM project to the Tenable.io scan that covers its production infrastructure for accurate vulnerability data.
Use the Scheduler to align Invicti ASPM polling with your Tenable.io scan cadence so findings always reflect the latest state.

Limitations

Tenable.io VM in Invicti ASPM imports findings from existing Tenable.io scans — it does not create new Tenable.io scans (unless Start Scan is enabled).
Only scans accessible via the provided API key are available for selection.
Agent-based and cloud connector findings are imported only if the bound scan includes them.
