Tenable.io WAS DAST/API Integration

Tenable.io Web Application Scanning (WAS) is a cloud-based DAST solution that provides comprehensive web application vulnerability scanning. This integration allows Invicti ASPM to trigger Tenable.io WAS scans and import vulnerability findings.

Prerequisites

Field	Description
Access Key	Tenable.io API access key
Secret Key	Tenable.io API secret key

How to Get API Keys (on Tenable.io Side)

Log in to Tenable.io .
Click your profile icon in the upper right corner.
Select My Account from the dropdown.
Navigate to the API Keys tab.
Click Generate to create a new API key pair.
Copy both the Access Key and Secret Key — the secret key is shown only once.

Step 1: Navigate to Integrations

From the left sidebar menu, click on Integrations.

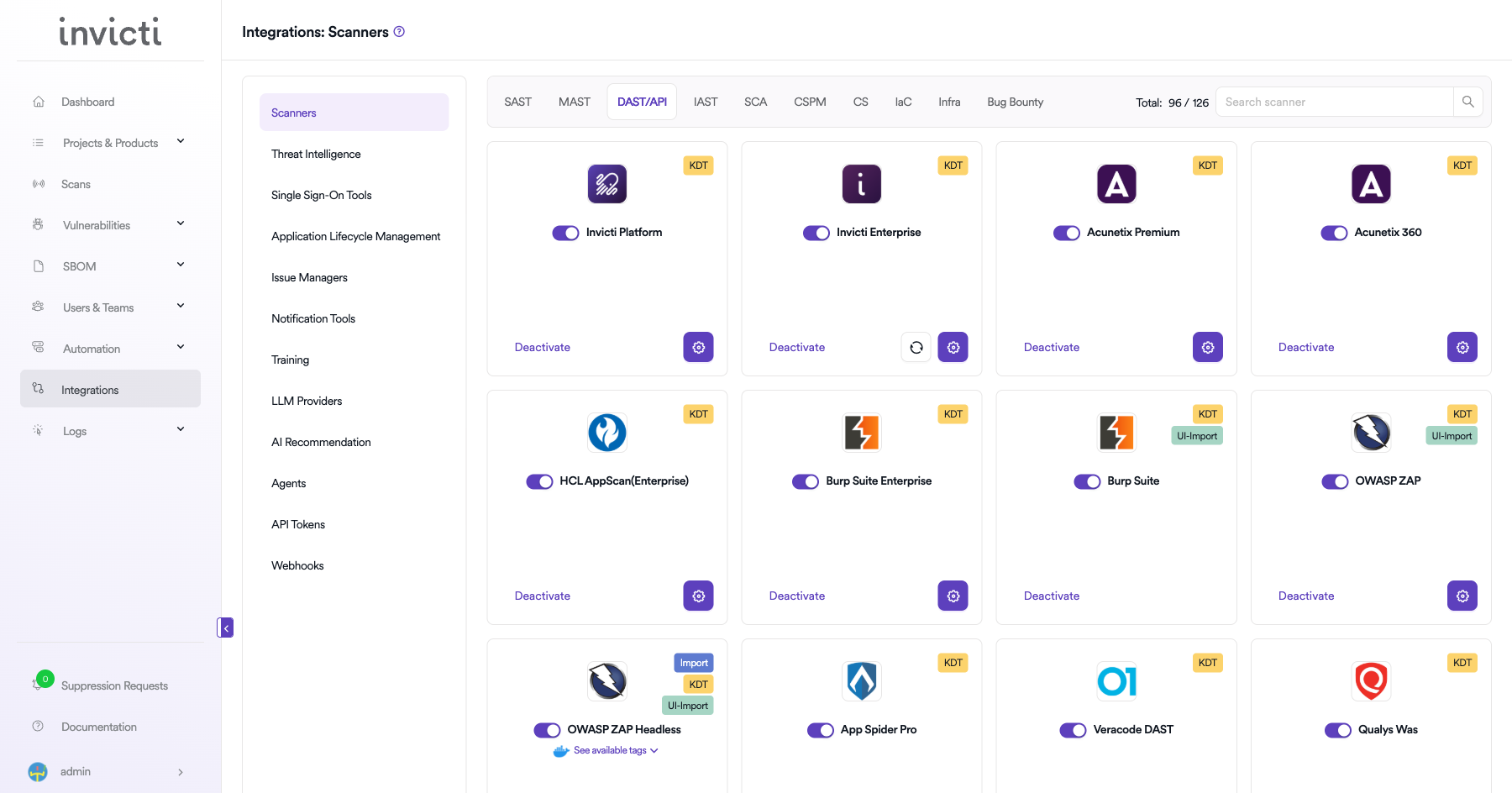

Step 2: Select the DAST/API Tab

On the Integrations > Scanners page, click on the DAST/API tab.

Step 3: Find and Activate Tenable.io WAS

Scroll through the list of DAST/API scanners to find Tenable.io WAS.

If Tenable.io WAS is not activated, you will see an "Activate" button. Click it to enable the integration.

Note: The scan method badge on the Tenable.io WAS card shows KDT, which means scans are triggered through the Kondukto CLI tool (KDT).

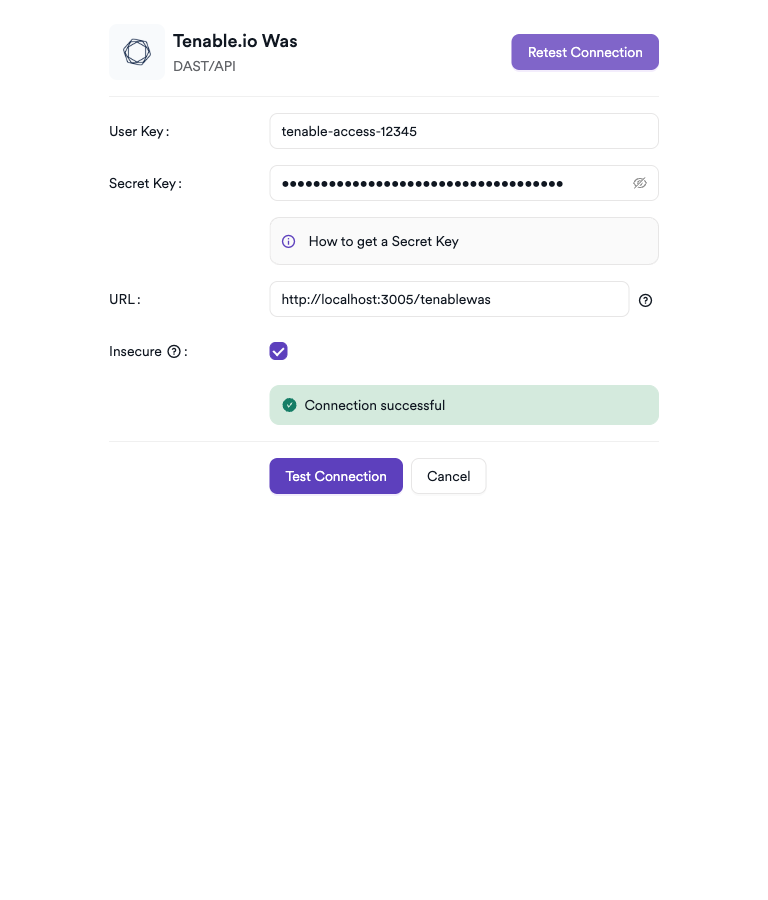

Step 4: Configure Connection Settings

Click on the gear icon on the Tenable.io WAS card to open the configuration panel. Fill in the required fields:

User Key: Enter your Tenable.io API user key.
Secret Key: Paste your Tenable.io API secret key.
URL: Enter your Tenable.io API URL.
Insecure: Enable this checkbox only if your Tenable.io instance uses a self-signed SSL certificate.

Step 5: Test the Connection

Click Test Connection. A green Connection successful message confirms the API keys are valid.

Summary

Step	Action
1	Navigate to Integrations from the sidebar
2	Select the DAST/API tab
3	Activate Tenable.io WAS
4	Enter Access Key and Secret Key
5	Test the connection

How to Create a Scan

Navigate to Project Scanners

Open a project in Invicti ASPM.
Go to Settings > Scanners.
Click Add Scanner.

Add Tenable.io WAS Scanner

Select DAST/API as the scanner type.
Choose Tenable.io WAS from the scanner list.
Click Add to open the scan configuration drawer.

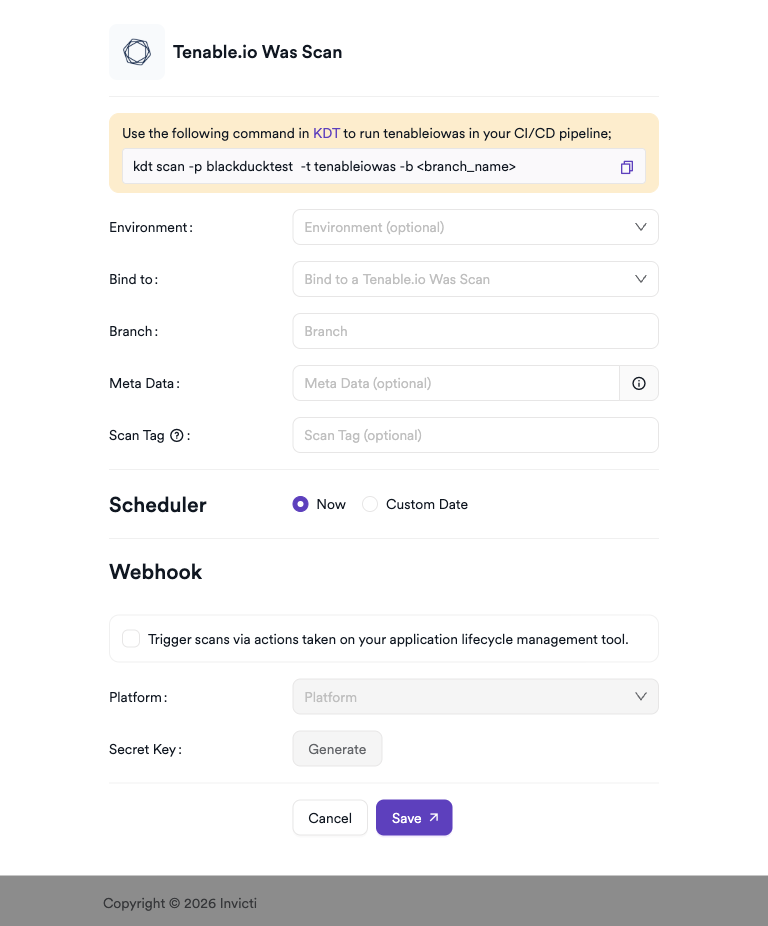

Scan Configuration Fields

Field	Description	Required
Environment	Select the environment for the scan	No
Bind To	Tenable.io WAS scan to bind to	Yes
Branch	Source code branch associated with this scan	No
Meta Data	Additional metadata for the scan	No
Scan Tag	Tag to identify the scan	No

Scheduler

Enable the Scheduler toggle to run scans on a recurring schedule.

Webhook (Optional)

Add a webhook URL to receive scan completion notifications.

KDT Command

kdt scan -p <project_name> -t tenableiowas -b <branch_name>

Troubleshooting

Connection Fails

Issue	Resolution
Invalid API keys	Regenerate the API keys from your Tenable.io account settings
WAS module not licensed	Ensure your Tenable.io subscription includes Web Application Scanning
Key permissions	The API keys must belong to an account with WAS scanning permissions
Network access	Ensure outbound access to `cloud.tenable.com` on port 443 is allowed

Scan Issues

Issue	Resolution
No scan templates available	Verify the Tenable.io account has WAS templates configured
Scan not starting	Check the Tenable.io WAS scanner status and available scan slots
Empty results	Confirm the scan completed in the Tenable.io WAS dashboard
Target not reachable	Ensure the target URL is accessible from Tenable.io's scanning infrastructure

Best Practices

Use a dedicated service account with API access limited to Web Application Scanning.
Store API keys securely; treat them as passwords.
Rotate API keys periodically and update the integration immediately.
Ensure target web applications are reachable from Tenable.io's cloud scanning infrastructure.
Use scan templates that match the application type (web, API, authenticated).

Limitations

Tenable.io WAS requires the target application to be accessible from Tenable.io's cloud infrastructure or via a scanner agent for internal applications.
The Web Application Scanning module must be separately licensed within Tenable.io.
API key rotation invalidates existing keys immediately; update the integration promptly.
Concurrent scan capacity is governed by your Tenable.io subscription tier.
