Veracode SCA

Veracode SCA (formerly Sourceclear) scans open-source dependencies in your application repositories to identify known vulnerabilities and outdated libraries. In Invicti ASPM, Veracode SCA is an import-based integration — scan results are generated by the Veracode SCA CLI (srcclr) and then imported into Invicti ASPM.

Important: Veracode SCA is an import-based scanner. No connection credentials are required in Invicti ASPM. Scans are run locally using the Veracode SCA CLI (srcclr), and the resulting JSON report is imported into Invicti ASPM.

Prerequisites

Requirement	Description
Veracode SCA CLI (`srcclr`)	Install the Veracode SCA CLI on your build server or developer machine
Veracode SCA Agent Token	Required by the `srcclr` CLI to authenticate with the Veracode SCA service
JSON Export	Generate a JSON report using `srcclr` and import it into Invicti ASPM

How to Get a Veracode SCA Agent Token (on Veracode Side)

Log in to the Veracode Platform.
Navigate to Veracode SCA > Agents.
Click Create Agent or select an existing agent.
Copy the Agent Token from the agent details page.

Note: The Agent Token is used only by the srcclr CLI — it is not entered in Invicti ASPM.

Step 1: Navigate to Integrations

From the left sidebar menu, click on Integrations.

Step 2: Select the SCA Tab

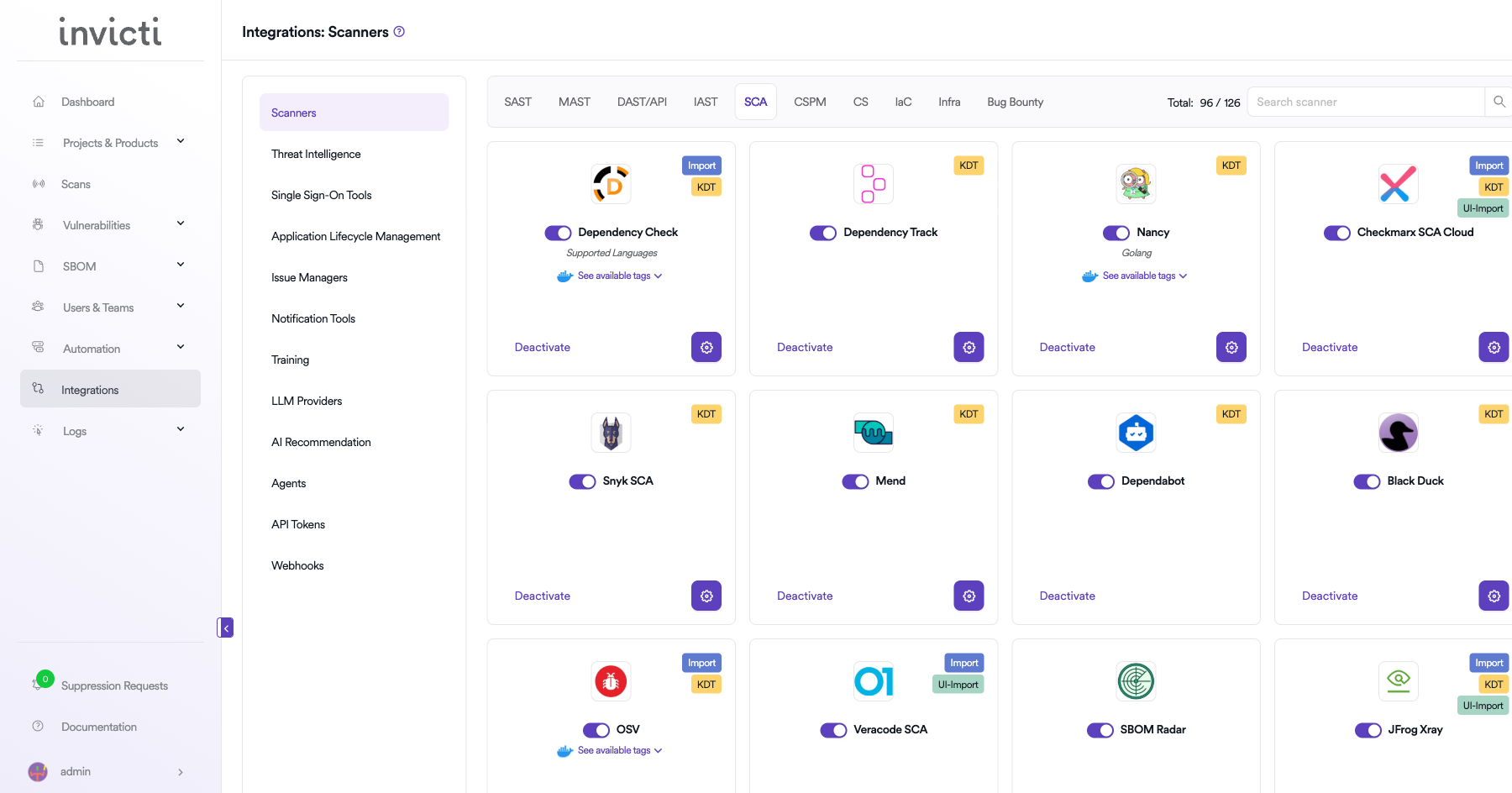

On the Integrations > Scanners page, click on the SCA tab.

Step 3: Find and Activate Veracode SCA

Scroll through the list of SCA scanners to find Veracode SCA.

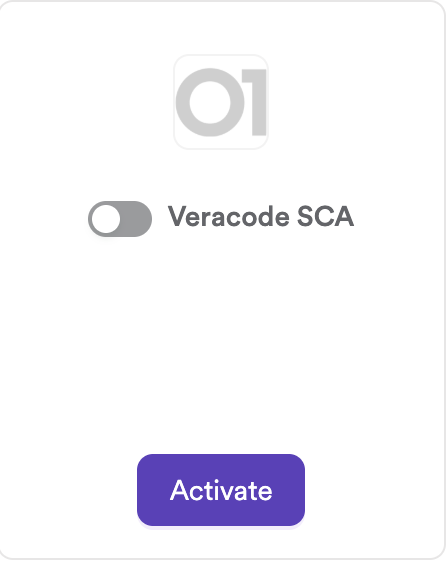

If Veracode SCA is not activated, click the Activate button to enable the integration.

Note: The scan method badge on the Veracode SCA card is Import. No connection settings are required.

Step 4: Import Scan Results

Run the srcclr CLI scan and import the output file via KDT:

# Run Veracode SCA scan and generate JSON
SRCCLR_API_TOKEN=<your-agent-token> srcclr scan --json > results.json

# Import the results using KDT
kdt scan -p <project_name> -t veracodesca -b <branch_name> --file results.json

Summary

Step	Action
1	Navigate to Integrations from the sidebar
2	Select the SCA tab
3	Activate Veracode SCA
4	Run `srcclr` CLI and import the JSON report via KDT

How to Create a Scan

KDT Command

kdt scan -p <project_name> -t veracodesca -b <branch_name>

Generating the JSON Report with Veracode SCA CLI

Installation

curl -sSL https://download.sourceclear.com/install | sh

Running a Scan

# Set your agent token
export SRCCLR_API_TOKEN=<your-agent-token>

# Scan a project directory and export JSON
cd /path/to/your/project
srcclr scan --json > results.json

The results.json file is the report file to import into Invicti ASPM.

Troubleshooting

Import Issues

Issue	Resolution
Invalid JSON format	Ensure the file was generated by `srcclr scan --json`. Other formats are not supported.
Empty results after import	The project may have no open-source dependencies, or all detected vulnerabilities are below the severity threshold.
Import fails with parse error	The JSON file may be corrupted or truncated. Re-run the `srcclr` scan and regenerate the report.
Duplicate findings	If the same report is imported multiple times, Invicti ASPM deduplicates based on vulnerability hashes.

Scan Issues

Issue	Resolution
`srcclr` fails to authenticate	Verify the `SRCCLR_API_TOKEN` environment variable is set correctly with a valid agent token.
No dependencies found	Ensure the project has a supported package manager manifest (e.g., `pom.xml`, `package.json`, `requirements.txt`).
Unsupported language	Check the Veracode SCA supported languages list for coverage details.

Best Practices

Integrate the srcclr scan step into your CI/CD pipeline to generate fresh scan results on every build.
Use a dedicated Veracode SCA agent token per environment (development, staging, production).
Store the agent token in your CI/CD secrets manager rather than hardcoding it in pipeline scripts.
Always use the --json flag to generate the machine-readable report format compatible with Invicti ASPM import.
Periodically check for updates to the srcclr CLI to ensure compatibility with the latest dependency manifests.

Limitations

Veracode SCA in Invicti ASPM is import-only — no live API connection is established, and scans cannot be triggered from Invicti ASPM.
Only the JSON output format from srcclr scan --json is supported; CSV or HTML exports are not importable.
Reachability analysis and method-level vulnerability data from Veracode SCA are not currently surfaced in Invicti ASPM findings.
The integration does not automatically pull new scan results from the Veracode Platform; each import is a manual or CI/CD-triggered action.
