Fortify On Demand DAST Integration

Fortify On Demand (FoD) is Micro Focus's cloud-based security testing platform that provides dynamic application security testing as a service. This integration allows Invicti ASPM to trigger Fortify On Demand DAST scans and import vulnerability findings.

Prerequisites

Field	Description
API URI	Fortify On Demand API base URI (e.g., `https://api.ams.fortify.com`)
Client ID	The client ID from your Fortify On Demand API credentials
Client Secret	The client secret from your Fortify On Demand API credentials

How to Get API Credentials (on Fortify On Demand Side)

Log in to the Fortify On Demand Portal .
Navigate to Administration > Settings > API.
Click Add Key to generate a new API key pair.
Enter a name for the key and select the required scopes (at minimum: api-tenant, dynamic-scan:read, dynamic-scan:start).
Copy the Client ID and Client Secret — the secret is shown only once.

Step 1: Navigate to Integrations

From the left sidebar menu, click on Integrations.

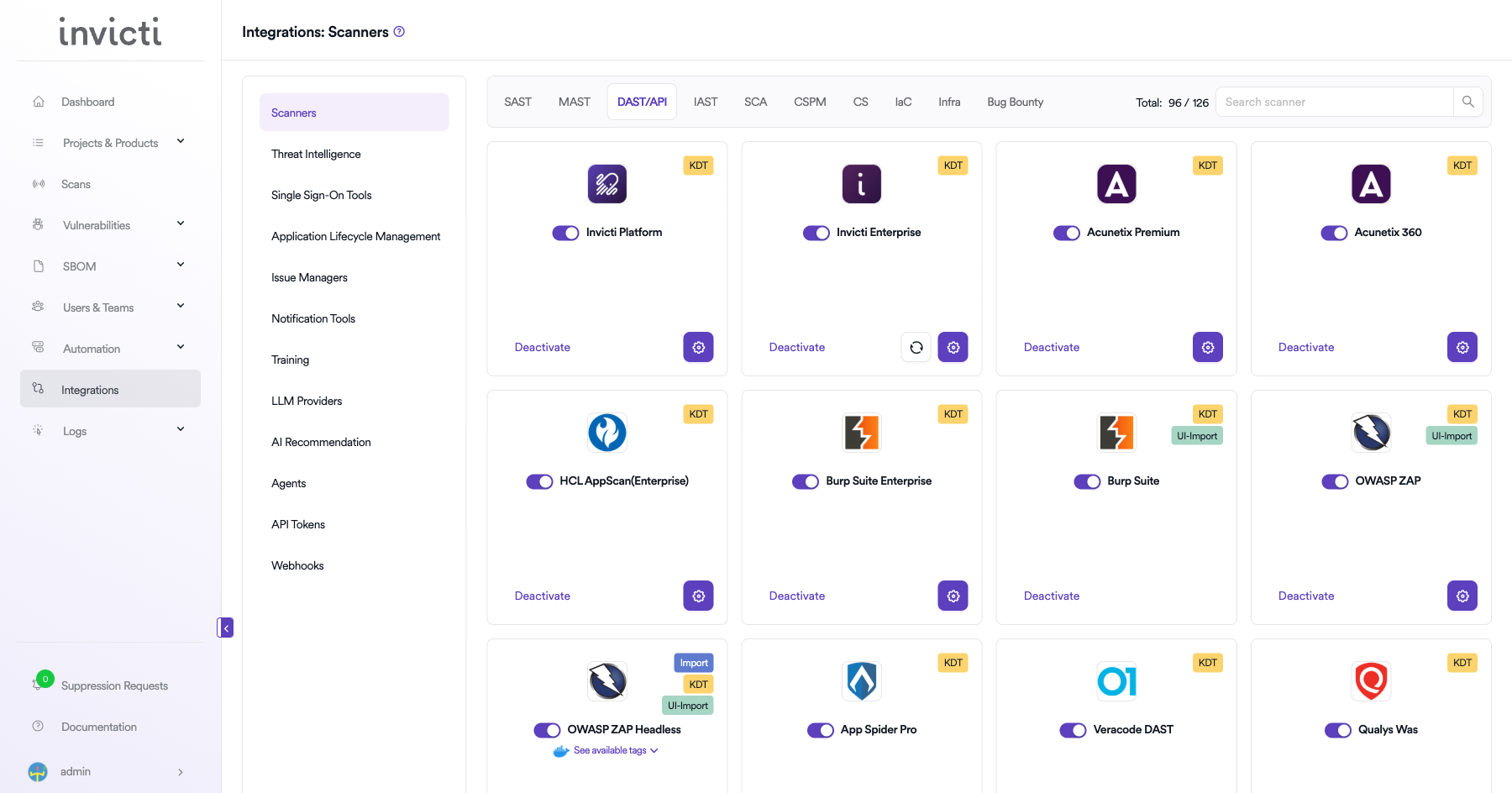

Step 2: Select the DAST/API Tab

On the Integrations > Scanners page, click on the DAST/API tab.

Step 3: Find and Activate Fortify On Demand DAST

Scroll through the list of DAST/API scanners to find Fortify On Demand DAST.

If Fortify On Demand DAST is not activated, you will see an "Activate" button. Click it to enable the integration.

Note: The scan method badge on the Fortify On Demand DAST card shows KDT, which means scans are triggered through the Kondukto CLI tool (KDT).

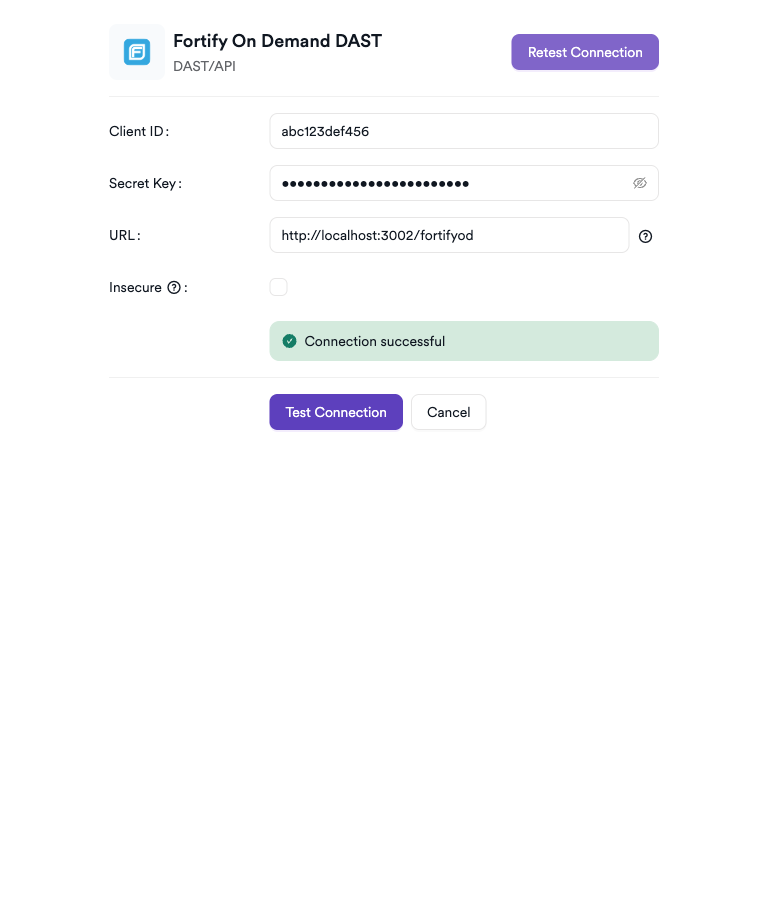

Step 4: Configure Connection Settings

Click on the gear icon on the Fortify On Demand DAST card to open the configuration panel. Fill in the required fields:

Client ID: Enter your FoD API client ID.
Secret Key: Paste your FoD API client secret key.
URL: Enter the Fortify On Demand API URL for your region (e.g., https://api.ams.fortify.com).
Insecure: Enable this checkbox only if your Fortify On Demand instance uses a self-signed SSL certificate.

Step 5: Test the Connection

Click Test Connection. A green Connection successful message confirms valid credentials.

Summary

Step	Action
1	Navigate to Integrations from the sidebar
2	Select the DAST/API tab
3	Activate Fortify On Demand DAST
4	Enter API URI, Client ID, and Client Secret
5	Test the connection

How to Create a Scan

Navigate to Project Scanners

Open a project in Invicti ASPM.
Go to Settings > Scanners.
Click Add Scanner.

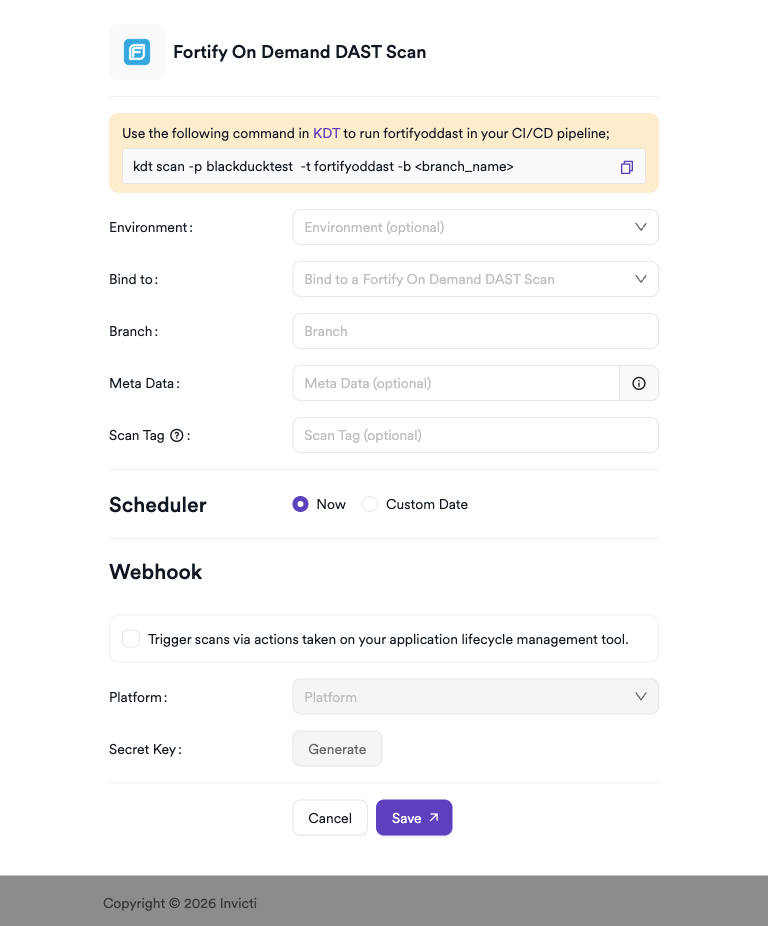

Add Fortify On Demand DAST Scanner

Select DAST/API as the scanner type.
Choose Fortify On Demand DAST from the scanner list.
Click Add to open the scan configuration drawer.

Scan Configuration Fields

Field	Description	Required
Environment	Select the environment for the scan	No
Bind To	Fortify On Demand project to bind to	Yes
Profiles	Scan profile to use	No
Branch	Source code branch associated with this scan	No
Meta Data	Additional metadata for the scan	No
Scan Tag	Tag to identify the scan	No

Scheduler

Enable the Scheduler toggle to run scans on a recurring schedule.

Webhook (Optional)

Add a webhook URL to receive scan completion notifications.

KDT Command

kdt scan -p <project_name> -t fodast -b <branch_name>

Troubleshooting

Connection Fails

Issue	Resolution
Invalid client credentials	Regenerate API credentials from the FoD portal and update the integration
Wrong API URI	Confirm the API URI for your region (AMS: `api.ams.fortify.com`, EMEA: `api.emea.fortify.com`, APAC: `api.apac.fortify.com`)
Insufficient scopes	Recreate the API key with the required scopes for dynamic scanning
Network access	Ensure Invicti ASPM can reach the Fortify On Demand API endpoints on port 443

Scan Issues

Issue	Resolution
No applications listed	Verify the API credentials have access to the target FoD applications
Scan not starting	Check FoD scan entitlement availability for your subscription
Empty results	Confirm the scan completed in the FoD portal and results are available
Entitlement exhausted	Contact Fortify On Demand support to review scan entitlement consumption

Best Practices

Use dedicated API credentials scoped to only the required permissions.
Select the correct region-specific API URI to avoid connection failures.
Rotate client secrets periodically and update the integration promptly.
Ensure FoD applications and releases are pre-configured before triggering scans.
Monitor scan entitlement consumption to avoid running out of allocated scan units.

Limitations

The API URI is region-specific; using the wrong URI will result in authentication failures.
Scan availability depends on your FoD subscription entitlement (number of scan units).
Applications and releases must be pre-created in the FoD portal; they cannot be managed from Invicti ASPM.
Some DAST scan options (e.g., authenticated scan setup, network authentication) must be configured directly in the FoD portal.
