HCL AppScan Standard DAST/API Integration

HCL AppScan Standard is a desktop-based DAST tool for testing web applications and APIs. In Invicti ASPM, AppScan Standard is an import-based scanner — you run scans in AppScan Standard independently and upload the exported report into Invicti ASPM.

Important: HCL AppScan Standard is an Import-based scanner. Scans are run locally in AppScan Standard, and the exported report file is imported into Invicti ASPM. No live connection to AppScan Standard is established.

Prerequisites

Requirement	Description
HCL AppScan Standard	A licensed installation of HCL AppScan Standard on a Windows machine
Scan Report	A completed AppScan Standard scan exported in XML format (`.xml`)

No AppScan Standard API credentials are needed for this integration.

Step 1: Navigate to Integrations

From the left sidebar menu, click on Integrations.

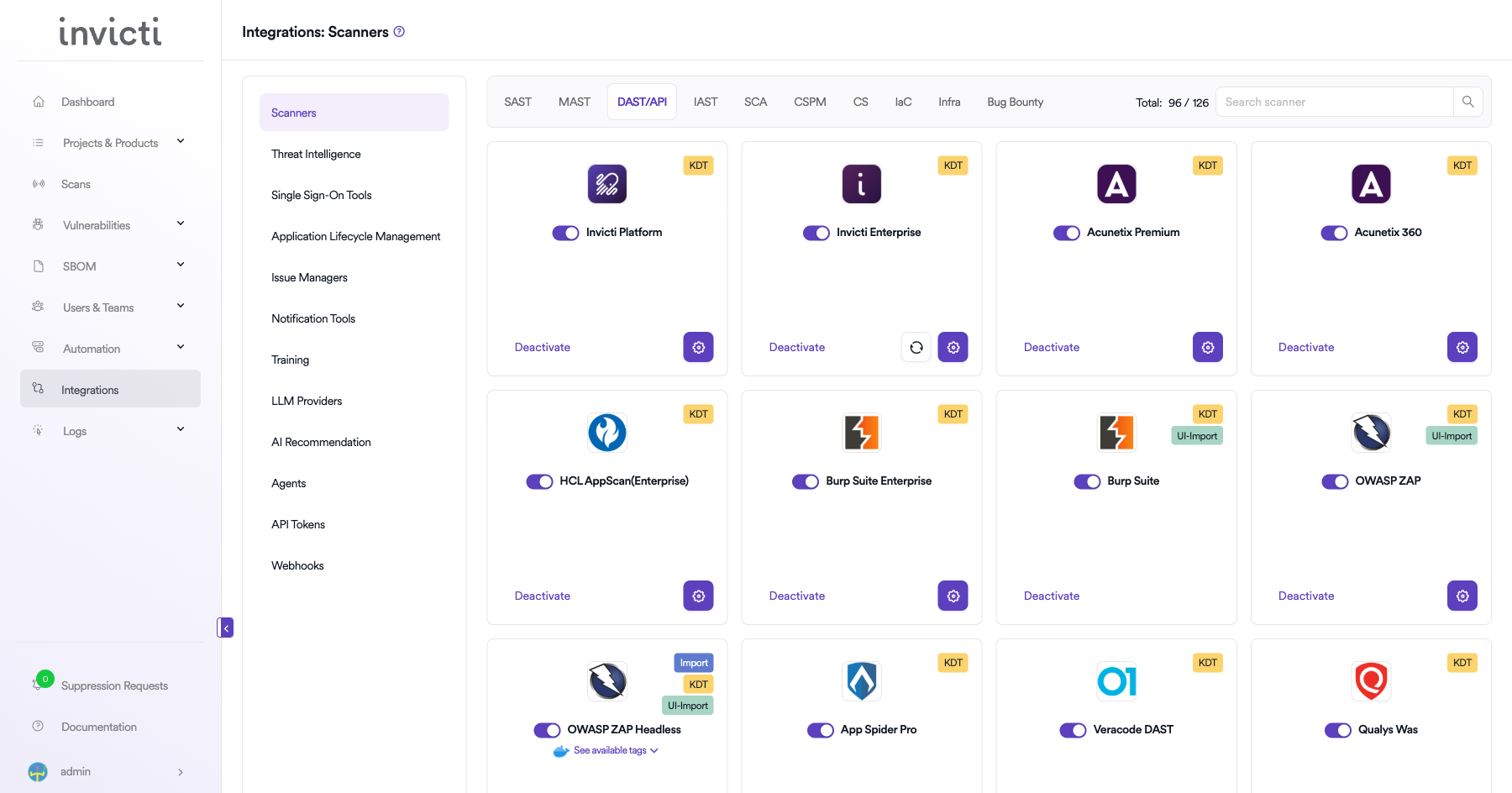

Step 2: Select the DAST/API Tab

On the Integrations > Scanners page, click on the DAST/API tab.

Step 3: Find and Activate HCL AppScan Standard

Scroll through the list of DAST/API scanners to find HCL AppScan Standard.

If HCL AppScan Standard is not activated, you will see an "Activate" button. Click it to enable the integration.

Note: The scan method badge on the HCL AppScan Standard card shows UI-Import. No external API credentials or server connection are required. Scans are run locally in HCL AppScan Standard and the exported report is uploaded into Invicti ASPM.

Summary

Step	Action
1	Navigate to Integrations from the sidebar
2	Select the DAST/API tab
3	Activate HCL AppScan Standard (no credentials needed)

How to Import Results

Export from HCL AppScan Standard

Open HCL AppScan Standard on your Windows machine.
Complete a scan against your target application.
Go to File > Save or Reports > Save Full Results.
Select XML as the export format.
Choose a file location and click Save.

Import into Invicti ASPM

Option A: UI Import

Navigate to a project in Invicti ASPM.
Go to Settings > Scanners > Add Scanner.
Select DAST/API > HCL AppScan Standard.
Click Import and upload the exported AppScan Standard report file (.xml).

Option B: KDT CLI Import

kdt import -p <project_name> -t appscanstandard -f /path/to/appscan-standard-report.xml

Supported Export Formats

Format	Description
XML	AppScan Standard XML export format

How to Create a Scan (Import Flow)

Navigate to Project Scanners

Open a project in Invicti ASPM.
Go to Settings > Scanners.
Click Add Scanner.

Add HCL AppScan Standard Scanner

Select DAST/API as the scanner type.
Choose HCL AppScan Standard from the scanner list.
Click Add and follow the import steps above.

Scan Configuration Fields

Field	Description	Required
Environment	Select the environment for the scan	No
Branch	Source code branch associated with this scan	No
Report File	AppScan Standard exported XML file to import	Yes

Troubleshooting

Import Issues

Issue	Resolution
File format not recognized	Ensure the export is in XML format; other formats may not be supported
Empty findings after import	Verify the AppScan Standard scan completed successfully before exporting
Import fails	Check that the XML file is not corrupted and conforms to the AppScan Standard export schema
Duplicate findings	Track which files have already been imported to avoid duplicating findings

Best Practices

Export scan reports immediately after scan completion.
Use descriptive file names that include the scan date and target application for easy tracking.
Import reports promptly to maintain current vulnerability status in Invicti ASPM.
Validate that the exported XML file is complete and readable before importing.

Limitations

This integration is import-only; Invicti ASPM cannot remotely trigger AppScan Standard scans.
HCL AppScan Standard is a Windows-only desktop application; scan execution is manual.
Only completed scan exports are supported; in-progress scan data cannot be imported.
Supported format is limited to XML.
Re-importing the same report may create duplicate findings if deduplication is not managed.
