Veracode DAST Integration

Veracode Dynamic Analysis (DAST) is a cloud-based web application scanning service that identifies runtime vulnerabilities in web applications and APIs. This integration allows Invicti ASPM to trigger Veracode Dynamic Analysis scans and import results.

Prerequisites

Field	Description
API ID	Veracode API ID from your account credentials
API Key	Veracode API Key paired with the API ID

How to Get API Credentials (on Veracode Side)

Log in to the Veracode Platform .
Click your username in the upper right corner.
Select API Credentials from the dropdown menu.
Click Generate API Credentials.
Copy both the API ID and API Key — the key is shown only once.

Note: Veracode API credentials are generated per user. Use credentials from a service account or integration-specific account.

Step 1: Navigate to Integrations

From the left sidebar menu, click on Integrations.

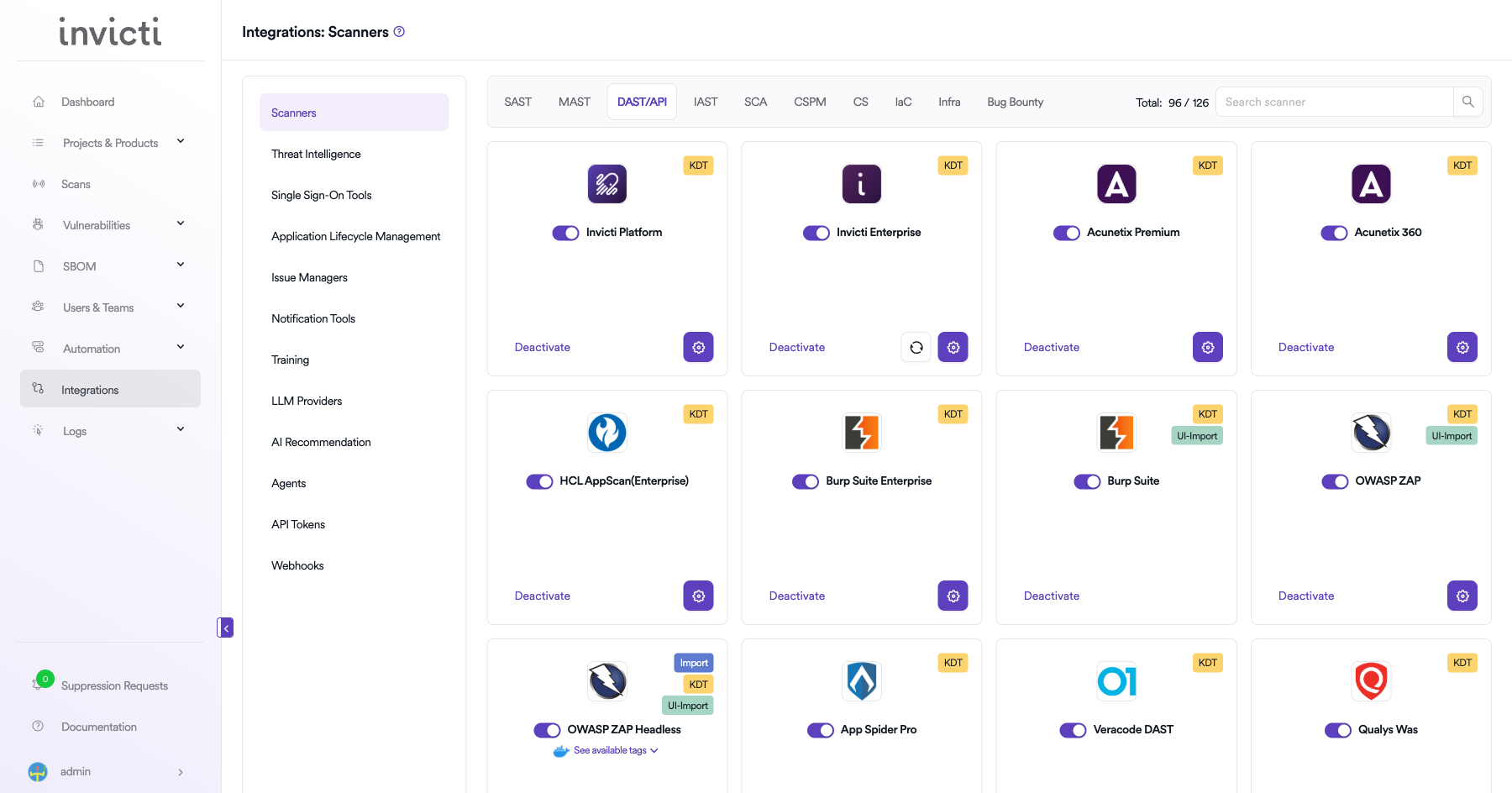

Step 2: Select the DAST/API Tab

On the Integrations > Scanners page, click on the DAST/API tab.

Step 3: Find and Activate Veracode DAST

Scroll through the list of DAST/API scanners to find Veracode DAST.

If Veracode DAST is not activated, you will see an "Activate" button. Click it to enable the integration.

Note: The scan method badge on the Veracode DAST card shows KDT, which means scans are triggered through the Kondukto CLI tool (KDT).

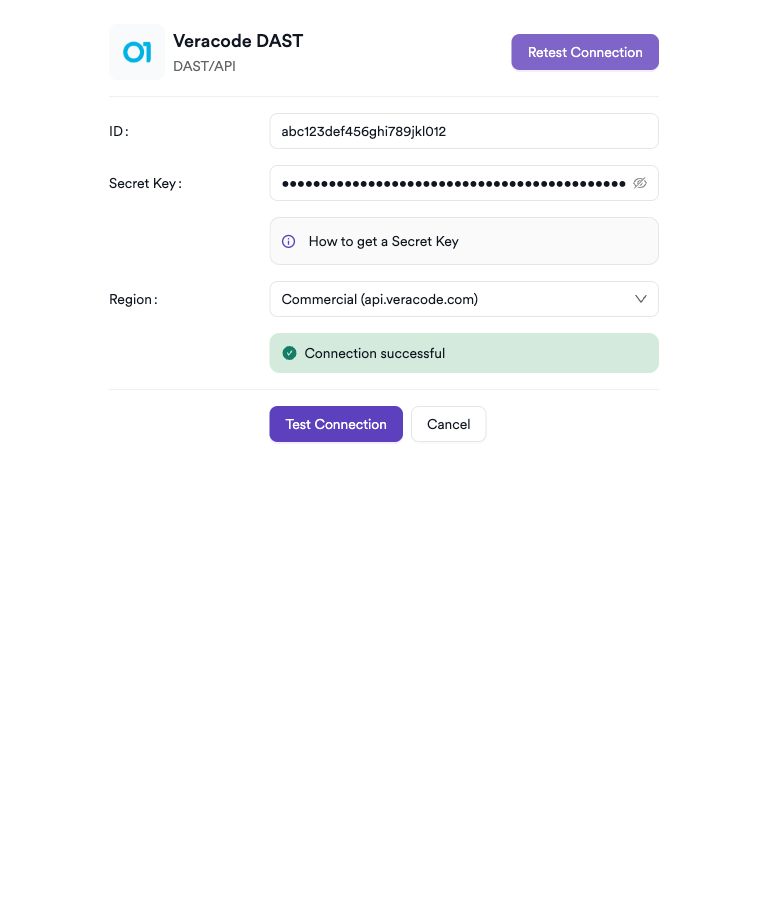

Step 4: Configure Connection Settings

Click on the gear icon on the Veracode DAST card to open the configuration panel. Fill in the required fields:

ID: Enter your Veracode API ID.
Secret Key: Paste your Veracode API secret key.
Region: Select your Veracode region (Commercial for api.veracode.com, European for api.veracode.eu, or United States Federal for api.veracode.us).

Step 5: Test the Connection

Click Test Connection. A green Connection successful message confirms the credentials are valid.

Summary

Step	Action
1	Navigate to Integrations from the sidebar
2	Select the DAST/API tab
3	Activate Veracode DAST
4	Enter API ID and API Key
5	Test the connection

How to Create a Scan

Navigate to Project Scanners

Open a project in Invicti ASPM.
Go to Settings > Scanners.
Click Add Scanner.

Add Veracode DAST Scanner

Select DAST/API as the scanner type.
Choose Veracode DAST from the scanner list.
Click Add to open the scan configuration drawer.

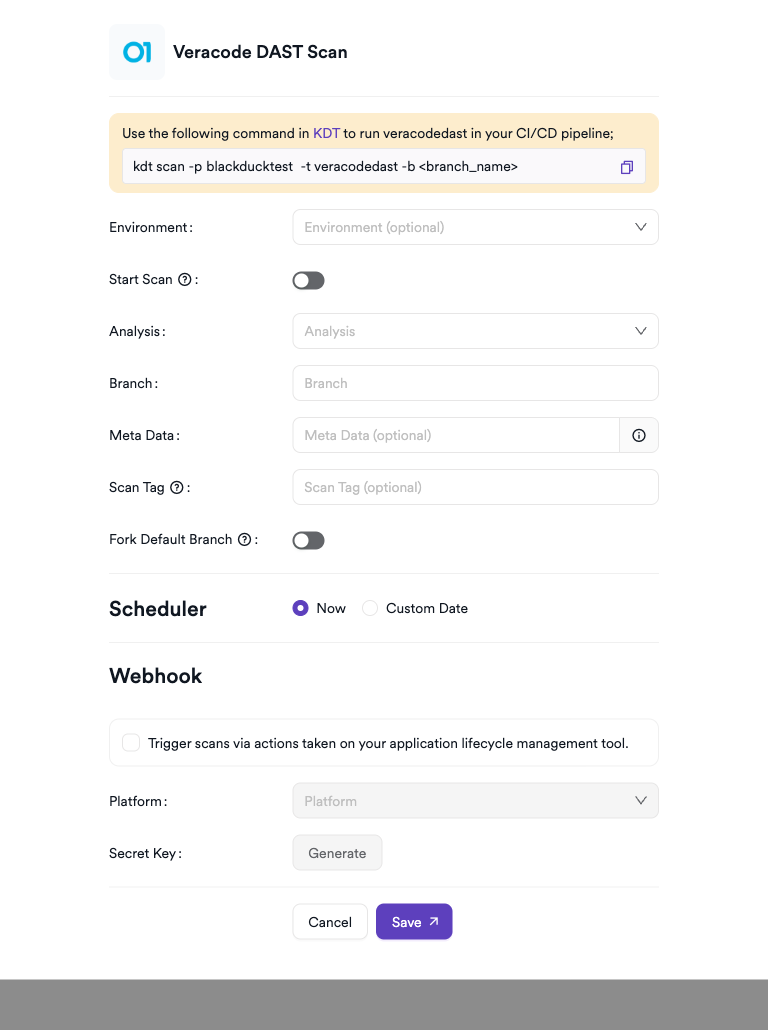

Scan Configuration Fields

Field	Description	Required
Environment	Select the environment for the scan	No
Start Scan	Toggle to create a new Dynamic Analysis (disabled = bind to existing)	No
Analysis	Existing Veracode Dynamic Analysis to bind to (if Start Scan is off)	Conditional
Branch	Source code branch associated with this scan	No
Meta Data	Additional metadata for the scan	No
Scan Tag	Tag to identify the scan	No

Scheduler

Enable the Scheduler toggle to run scans on a recurring schedule.

Webhook (Optional)

Add a webhook URL to receive scan completion notifications.

KDT Command

kdt scan -p <project_name> -t veracodedast -b <branch_name>

Troubleshooting

Connection Fails

Issue	Resolution
Invalid API credentials	Regenerate API credentials from the Veracode Platform and update the integration
Account not authorized	Ensure the account has the Dynamic Analysis API role assigned
Region mismatch	Confirm you are using credentials from the correct Veracode region (US, EU)
Network access	Ensure outbound access to `api.veracode.com` on port 443 is permitted

Scan Issues

Issue	Resolution
No analyses found	Verify the service account has access to the target analysis in Veracode
Scan not starting	Confirm the target URL is reachable from Veracode's scanning infrastructure
Empty results	Check that the Dynamic Analysis completed successfully in the Veracode Platform
Permission denied	The account requires the Dynamic Analysis API or Creator role

Best Practices

Use a dedicated service account with the Dynamic Analysis API role.
Store API credentials securely; never share them across teams.
Rotate API credentials annually or upon personnel changes.
Ensure the target applications are publicly accessible or configure Veracode's internal scanning agent for private applications.
Define scan schedules that align with your release cycles.

Limitations

Veracode Dynamic Analysis requires the target application to be accessible from Veracode's cloud scanning infrastructure or via an internal scanning agent.
API credentials are region-specific; US and EU accounts use different API endpoints.
Concurrent scan limits are governed by your Veracode subscription tier.
Some advanced configurations (e.g., crawl scripts, authentication configurations) must be set up directly in the Veracode Platform.
