OpenRouter

OpenRouter is a unified API gateway that provides access to hundreds of large language models from various providers (OpenAI, Anthropic, Google, Meta, Mistral, and more) through a single API endpoint. The Invicti ASPM integration with OpenRouter enables AI-powered features — such as vulnerability remediation guidance and security analysis — with the flexibility to switch between models from different providers using one integration.

Purpose in Invicti ASPM

OpenRouter is used in Invicti ASPM as an LLM Provider — supplying the language model that powers AI-assisted security features, while offering access to a wide range of models through a single API key.

Use Case	Description
AI remediation guidance	Generate fix recommendations for discovered vulnerabilities using any model available on OpenRouter
Security analysis	Use OpenRouter-hosted language models to assist in triage and prioritization of security findings
Model flexibility	Switch between models from different AI providers without managing multiple API keys

Where It Is Used

Page	Navigation Path	Purpose
Integrations — LLM Providers	Integrations › LLM Providers	Admin activation and model configuration

Prerequisites

Before activating the integration, obtain an API key from your OpenRouter account:

Field	Description	Required
Token	OpenRouter API key used to authenticate requests	Yes
Model	The model to use (selected after a successful test connection)	Yes

How to Obtain the API Key (on the OpenRouter Side)

Log in to your OpenRouter account at openrouter.ai.
Navigate to Settings › API Keys (or click your profile icon › Keys).
Click Create Key and give it a descriptive name (e.g., invicti-aspm).
Copy the key immediately — it will not be shown again after closing the dialog.

Note: OpenRouter charges per token based on the model used. Ensure your account has sufficient credits before activating the integration.

Activation Steps

Step 1: Navigate to Integrations

From the left sidebar, click Integrations.

Step 2: Open the LLM Providers Tab

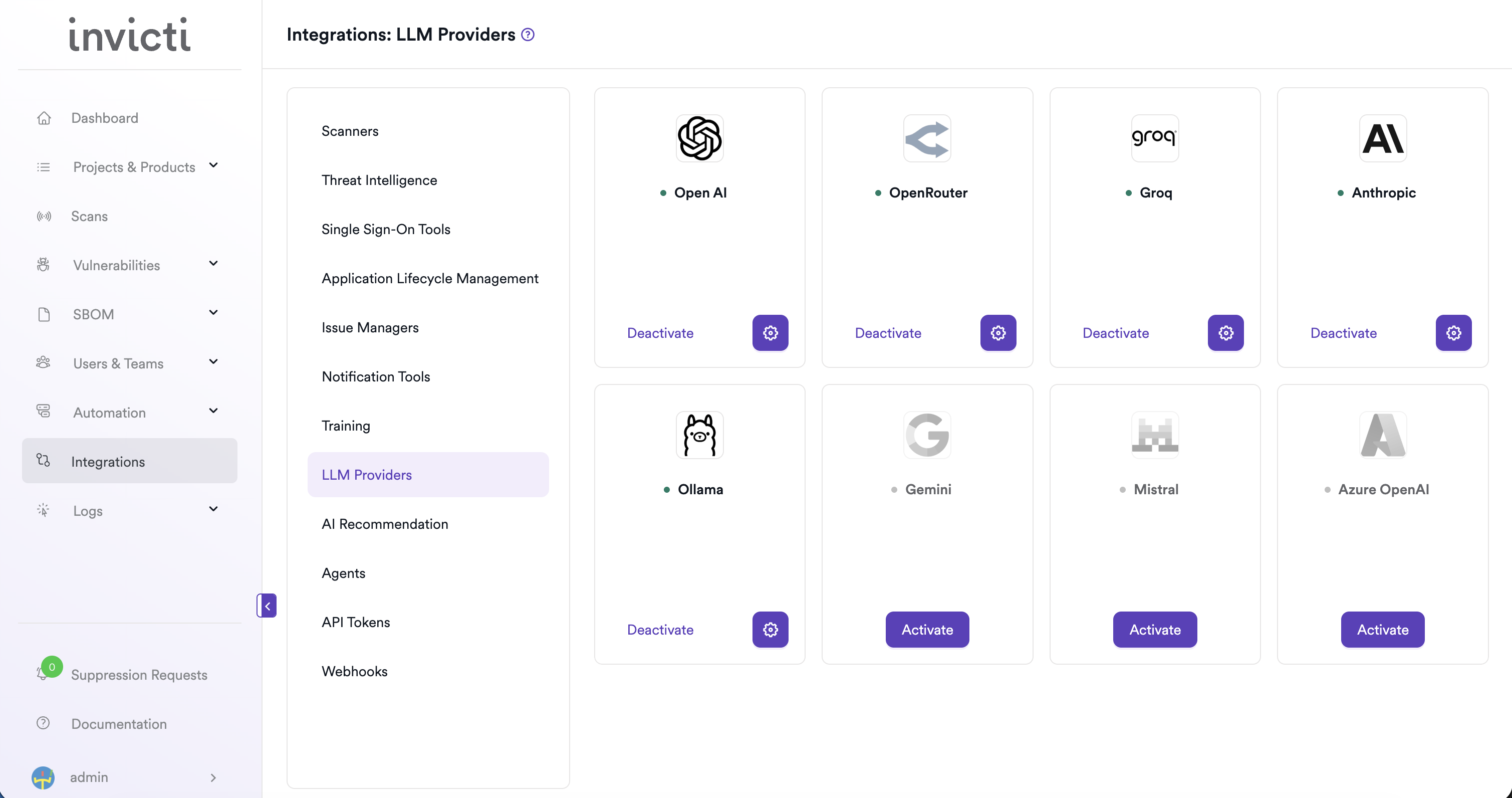

On the Integrations page, click the LLM Providers tab.

Step 3: Find and Activate OpenRouter

Locate the OpenRouter card.

If it is not yet activated, click Activate to open the settings drawer.
If it is already activated, click the gear icon to open the settings drawer and reconfigure.

Step 4: Fill In the Required Fields

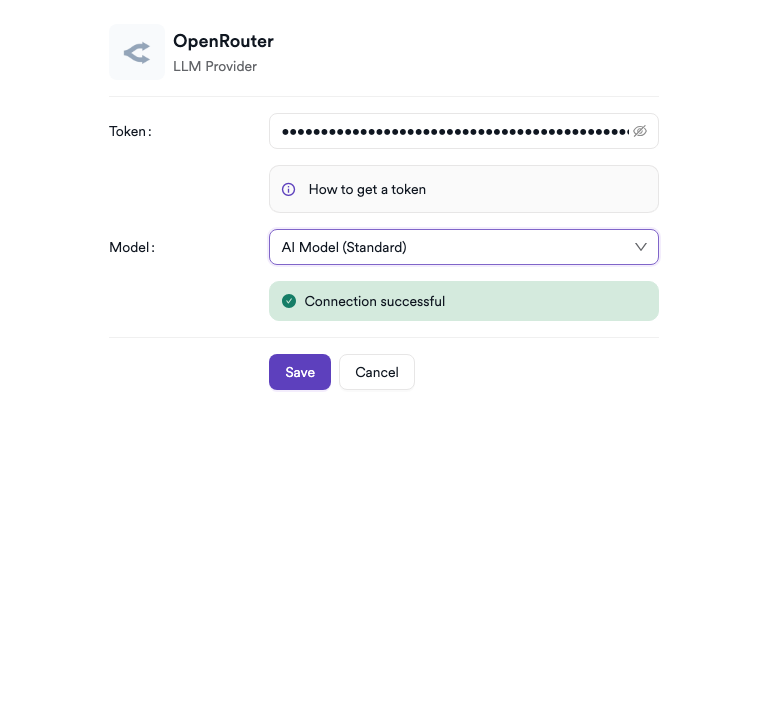

In the settings drawer, enter your OpenRouter API key:

Field	Description	Required
Token	Your OpenRouter API key	Yes

Step 5: Test the Connection

Click Test Connection. A green "Connection successful" message confirms that Invicti ASPM can reach the OpenRouter API with the provided key. The Model dropdown will appear automatically after a successful test.

Step 6: Select a Model

From the Model dropdown, select the model you want to use for AI features in Invicti ASPM. OpenRouter provides access to models from multiple providers (e.g., openai/gpt-4o, anthropic/claude-3-5-sonnet, google/gemini-2.0-flash).

Step 7: Save

Click Save to complete the activation.

Summary

Step	Action
1	Navigate to Integrations from the sidebar
2	Select the LLM Providers tab
3	Find OpenRouter and click Activate (or the gear icon)
4	Enter your OpenRouter API key in the Token field
5	Click Test Connection — verify the success message
6	Select a Model from the dropdown
7	Click Save

Troubleshooting

Issue	Resolution
Connection failed	Verify the API key is correct and has not been revoked. Regenerate it from the OpenRouter settings if needed.
Invalid API key	Ensure the key was copied in full without extra spaces or characters.
No models available	Confirm your OpenRouter account is active and has sufficient credits. Some models may require specific subscription tiers.
401 Unauthorized	The API key may have expired or been disabled. Generate a new key and update the configuration.
Insufficient credits	OpenRouter is a pay-per-use service. Add credits to your OpenRouter account to continue using the integration.
Model not available	Some models on OpenRouter have limited availability or require separate access requests. Choose an alternative model from the dropdown.
