Qualys VMDR

Qualys VMDR (Vulnerability Management, Detection and Response) is a cloud-based vulnerability management platform. In Invicti ASPM, the integration connects to your Qualys subscription to import vulnerability scan results into your projects, with support for binding to existing scans, fetching historical results, or launching new scans.

Prerequisites

Field	Description
Username	Qualys account username
Password	Qualys account password
URL	the base URL of your Qualys platform API (e.g., https://qualysapi.qualys.com)

Get credentials (on Qualys side)

Log in to the Qualys console.
Use your Qualys **username **and **password **for the integration.
Obtain the correct API URL for your Qualys subscription from the Qualys support documentation or your account page. The API endpoint differs by region (e.g., US, EU, India).

📘
TIP
The API URL format is https://qualysapi.<region>.qualys.com — check your Qualys account settings to confirm the correct regional endpoint.

Step 1: Navigate to Integrations

From the left sidebar menu, click Integrations.

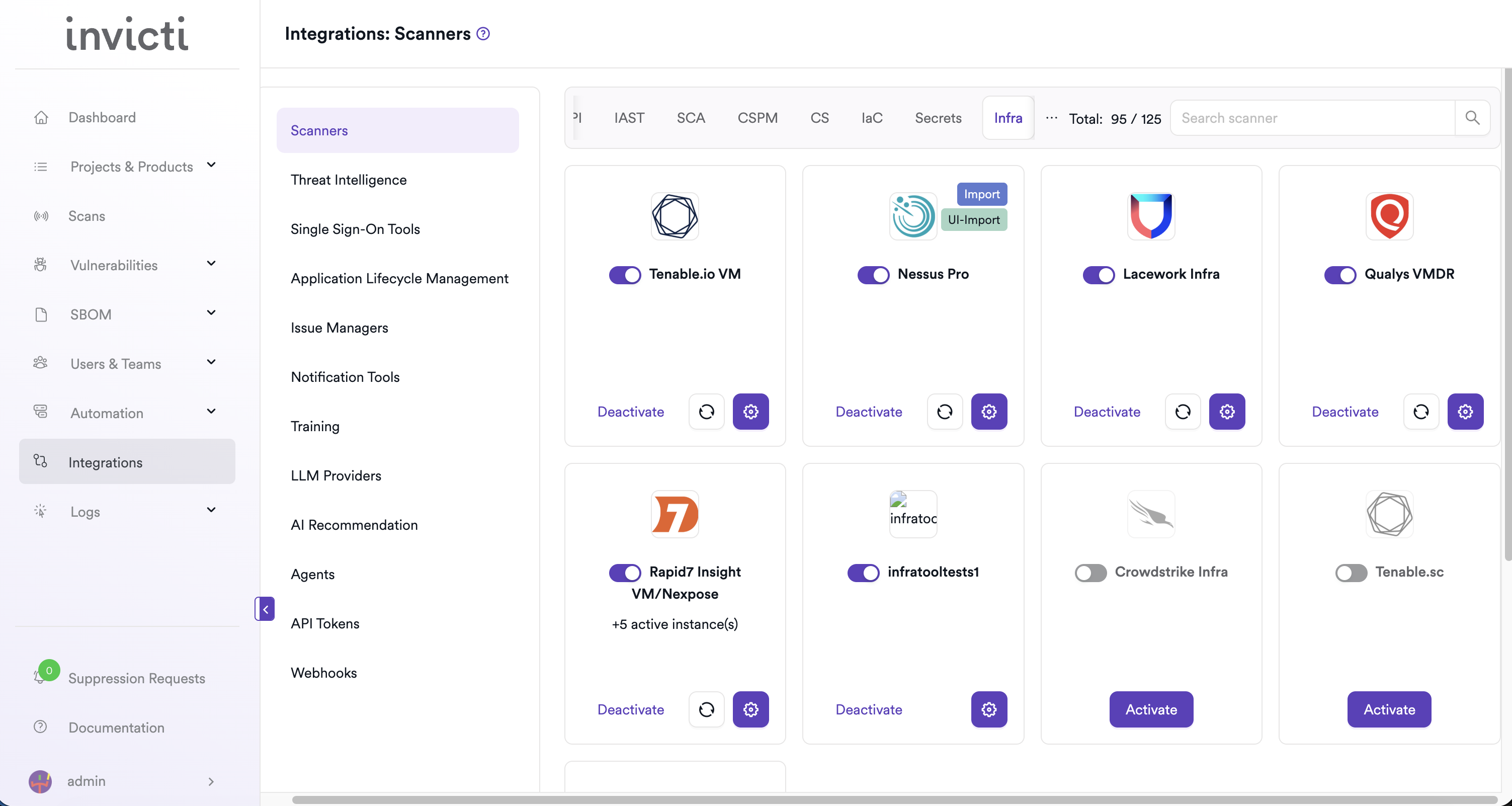

Step 2: Select the Infra tab

On the Integrations > Scanners page, click the **Infra **tab.

Step 3: Find and activate Qualys VMDR

Scroll through the list of Infra scanners to find Qualys VMDR.

If Qualys VMDR is not activated, click **Activate ** to enable the integration.

Step 4: Configure connection settings

Click the gear icon on the Qualys VMDR card to open the settings panel. Fill in the required fields:

Field	Description	Required
Username	Qualys account username	Yes
Password	Qualys account password	Yes
URL	base URL of the Qualys API for your subscription	Yes
Insecure	skip TLS certificate verification (use only for self-signed certificates)	No

Step 5: Test the connection

Click Test Connection. A green Connection successful message confirms that Invicti Aspm can authenticate with the Qualys API.

Summary

Step	Action
1	Navigate to Integrations from the sidebar
2	Select the Infra tab
3	Activate Qualys VMDR
4	Enter Username, Password, and URL
5	Test the connection

Create a scan

Navigate to project scanners

Open a project in Invicti Aspm.
Go to Settings > Scanners.
Click Add Scanner.

Add Qualys VMDR scanner

Select Infra as the scanner type.
Choose Qualys VMDR from the scanner list.
Click Add to open the scan configuration drawer.

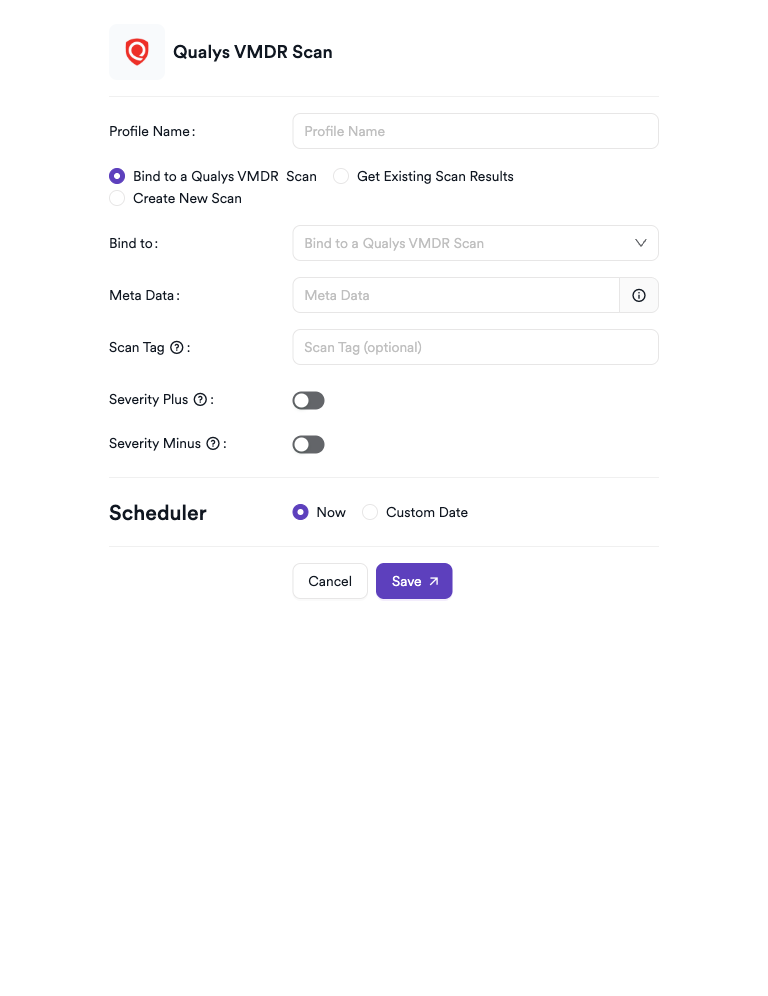

Scan configuration fields

The Qualys VMDR scan drawer offers three trigger modes:

Trigger mode	Description
Bind to a Qualys VMDR Scan	link to an existing Qualys scan and import its latest results
Get Existing Scan Results	fetch results from a completed Qualys scan without triggering a new one
Create New Scan	launch a new Qualys scan using a specified option profile and target IP

Common fields

Field	Description	Required
Profile Name	a name to identify this scan configuration	Yes
Meta Data	additional metadata to tag the scan	Yes
Scan Tag	free-text tag to identify or group scans	No
Severity+	increase severity of imported findings by one level	No
Severity-	decrease severity of imported findings by one level	No

Fields for "Bind to" and "Get Existing Scan Results"

Field	Description	Required
Bind to	select the existing Qualys scan to bind to or fetch results from	Yes

Fields for "Create New Scan"

Field	Description	Required
Option Profiles	select the Qualys option profile to use for the new scan	Yes
IP	target IP address or hostname for the new scan	Yes
Scan Title	a title for the newly created Qualys scan	Yes

📘
NOTE
Severity+ and Severity- are mutually exclusive — only one can be enabled at a time.

Scheduler

Enable the Scheduler toggle to automatically run Qualys VMDR scans on a recurring schedule.

Webhook (optional)

Add a webhook URL to receive scan completion notifications.

KDT command

kdt scan -p <project_name> -t qualysinfra -b -

Troubleshooting

Connection fails

Issue	Resolution
Invalid username or password	verify the credentials in the Qualys console. Ensure the account is active and has API access enabled.
URL unreachable	confirm you're using the correct regional API URL for your Qualys subscription.
API access not enabled	Qualys API access must be explicitly enabled for the account in the Qualys admin settings.
TLS certificate error	if using a proxy with a self-signed certificate, enable the Insecure option in the connection settings.

Scan issues

Issue	Resolution
No scans in Bind to dropdown	ensure at least one scan exists in your Qualys subscription and the account has access to it.
New scan fails to start	verify that the target IP is within a subscribed Qualys scan scope and the selected option profile is compatible.
Scan shows no findings	the bound scan may have no active vulnerabilities, or the scan may not have completed successfully. Check the Qualys console.
Scan results are outdated	use Get Existing Scan Results to force a fetch, or enable the Scheduler to pull results automatically.

Best practices

Use a dedicated Qualys account for Invicti Aspm with the minimum required API permissions.
Use the Bind to a Qualys VMDR Scan trigger mode when your scan schedule is managed in Qualys — this avoids creating duplicate scans.
Use Create New Scan only when you need Invicti Aspm to own the scan lifecycle.
Rotate Qualys credentials periodically and update the integration settings in Invicti Aspm accordingly.

Limitations

Qualys VMDR in Invicti Aspm doesn't support scanner appliance management — appliances must be configured in the Qualys console.
Only scans and option profiles accessible via the provided credentials are available for selection.
Creating new scans via Invicti Aspm consumes Qualys scan credits — monitor usage in the Qualys console.
